DIN Spacers Form F (PN 10)
Flexible up to the last millimetre! For total lengths up to 25 mm we recommend Spacers Form F made of solid PTFE.
Materials:
- PTFE (virgin or conductive)
- PP (up to nominal pipe size DN 300)
Other pressure levels
- PN 16
- PN 25
- PN 40
Optional extras
- reinforcement ring
- filled PTFE
Spacers Form F are also available as Inclined Spacers with various angles.
DN
| L (mm) | d2
≈ (mm) | d8
(mm) | Weights
(ca. g/mm) | |
min. | max. | ||||
15 | 10 | 15 | 16 | 50 | 3.8 |
20 | 10 | 20 | 16 | 60 | 5.6 |
25 | 10 | 20 | 22 | 70 | 7.5 |
32 | 10 | 20 | 31 | 82 | 9.7 |
40 | 10 | 20 | 37 | 92 | 12.0 |
50 | 10 | 20 | 48 | 107 | 15.4 |
65 | 10 | 20 | 64 | 127 | 20.3 |
80 | 10 | 20 | 76 | 142 | 24.3 |
100 | 10 | 20 | 101 | 162 | 27.1 |
125 | 10 | 20 | 125 | 192 | 35.9 |
150 | 10 | 20 | 153 | 218 | 40.7 |
200 | 10 | 20 | 201 | 273 | 57.6 |
250 | 10 | 20 | 254 | 328 | 72.7 |
300 | 10 | 20 | 303 | 378 | 86.2 |
350 | 10 | 25 | 333 | 438 | 136.7 |
400 | 10 | 25 | 382 | 488 | 155.7 |
450 | 10 | 25 | 430 | 536 | 172.9 |
500 | 10 | 25 | 480 | 594 | 206.7 |
Different nominal pipe sizes
and total lengths on request.

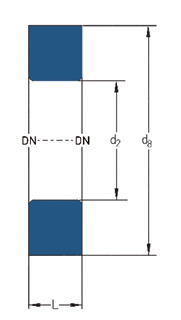

L = Total length
d2 = Inner diameter
d8 = Outer diameter
Technical data valid for the pressure level PN 10.
| DN | Lining thickness | Possible vacuum | |||
| standard | thick-walled | 23°C | 150°C | 200°C | |
| 25 |  | | | ||
| | | |||
| 40 | | | | ||
| | | |||
| 50 | | | | ||
| | | |||
| 80 | | | | ||
| | | |||
| 100 | | | | ||
| | | |||
| 150 | | | | ||
| | | |||
| 200 | | | | ||
| | | |||
| 250 | | | | ||
| | | |||
| 300 | | | | ||
| | | |||
Vacuum resistance:
| = | full vacuum |
 | = | limited vacuum |
 | = | no vacuum |
| Please refer to the next higher nominal pipe size if your nominal pipe size is not listed. | ||
