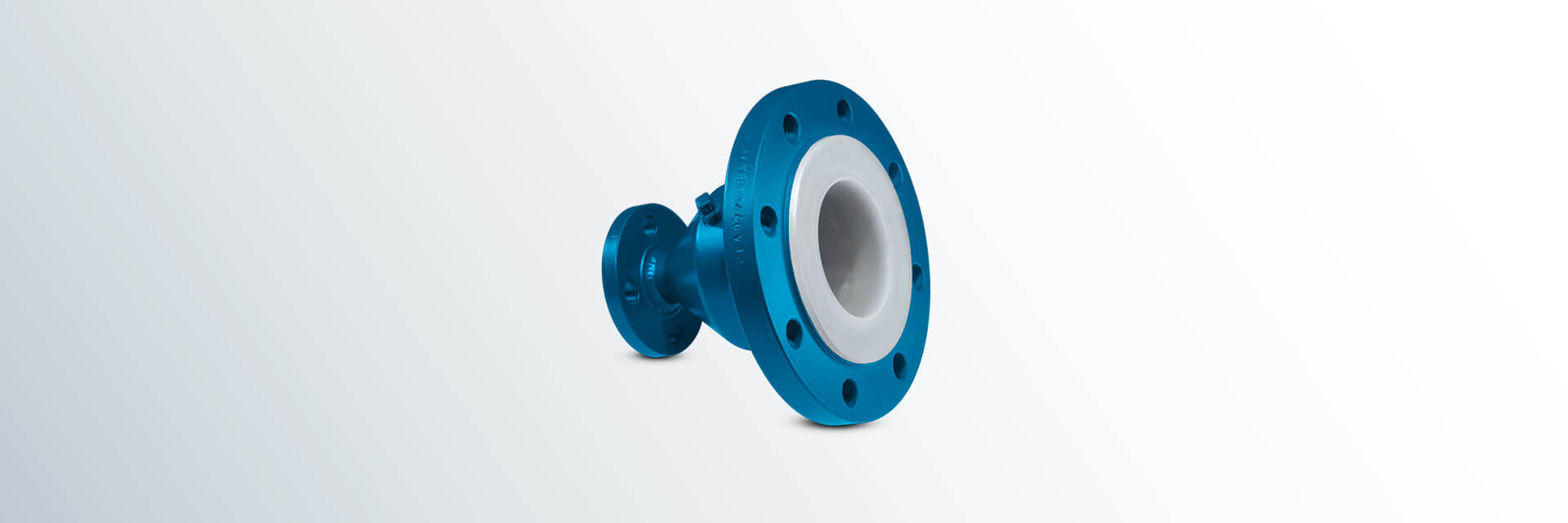

DIN Flanged Reducers concentric (PN 10)
Concentric Flanged Reducers are the universal solution for all changes of the nominal pipe size. Depending on the nominal width, the reducers are lined with PTFE, PFA or PP.
Materials:
- carbon steel
- stainless steel
Lining materials:
- PTFE (virgin or conductive)
- PFA (virgin or conductive)
- PP
Flanges according to EN 1092-1:
- fix-fix
- fix-loose
- loose-loose
Other pressure levels:
- PN 16
- PN 25
- PN 40
Special features:
- earthing stud/ lug
- vent hole extension
Optional extras:
- final painting
- non-destructive testing
DN1
| DN2
| L
(mm) | d1(1)
(mm) | d4(1)
(mm) | K(1)
(mm) | smin(1)
(mm) | a1(1)
(mm) | a2(1)
(mm) | d1(2)
(mm) | d4(2)
(mm) | K(2)
(mm) | smin(2)
(mm) | a1(2)
(mm) | a2(2)
(mm) | Lining mate-
| No. of bolts x thread | Wt. (ca. kg / pc.) | |
DN1 | DN2 | |||||||||||||||||
20 | 15 | 125 | 26.9 | 58 | 75 | 3.0 | 21.0 | 33.0 | 26.9 | 45 | 65 | 3.0 | 19.0 | 29.0 | PTFE | 4 x M12 | 4 x M12 | 2.1 |
25 | 15 | 125 | 33.7 | 68 | 85 | 3.0 | 21.0 | 33.0 | 26.9 | 45 | 65 | 3.0 | 19.0 | 29.0 | PTFE | 4 x M12 | 4 x M12 | 2.3 |
25 | 20 | 125 | 33.7 | 68 | 85 | 3.0 | 21.0 | 33.0 | 26.9 | 58 | 75 | 3.0 | 21.0 | 33.0 | PTFE | 4 x M12 | 4 x M12 | 2.7 |
32 | 20 | 130 | 42.4 | 78 | 100 | 3.0 | 21.0 | 35.0 | 26.9 | 58 | 75 | 3.0 | 21.0 | 33.0 | PTFE | 4 x M16 | 4 x M12 | 3.4 |
32 | 25 | 130 | 42.4 | 78 | 100 | 3.0 | 21.0 | 35.0 | 33.7 | 68 | 85 | 3.0 | 21.0 | 33.0 | PTFE | 4 x M16 | 4 x M12 | 3.7 |
40 | 20 | 145 | 48.3 | 88 | 110 | 4.0 | 22.0 | 36.0 | 26.9 | 58 | 75 | 4.0 | 22.0 | 34.0 | PFA | 4 x M16 | 4 x M12 | 3.7 |
40 | 25 | 145 | 48.3 | 88 | 110 | 3.0 | 21.0 | 35.0 | 33.7 | 68 | 85 | 3.0 | 21.0 | 33.0 | PTFE | 4 x M16 | 4 x M12 | 4.0 |
40 | 32 | 150 | 48.3 | 88 | 110 | 3.0 | 21.0 | 35.0 | 42.4 | 78 | 100 | 3.0 | 21.0 | 35.0 | PTFE | 4 x M16 | 4 x M16 | 4.9 |
50 | 25 | 160 | 60.3 | 102 | 125 | 4.0 | 22.0 | 40.0 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | PFA | 4 x M16 | 4 x M12 | 4.6 |
50 | 32 | 165 | 60.3 | 102 | 125 | 3.0 | 21.0 | 39.0 | 42.4 | 78 | 100 | 3.0 | 21.0 | 35.0 | PTFE | 4 x M16 | 4 x M16 | 5.5 |
50 | 40 | 165 | 60.3 | 102 | 125 | 3.0 | 21.0 | 39.0 | 48.3 | 88 | 110 | 3.0 | 21.0 | 35.0 | PTFE | 4 x M16 | 4 x M16 | 5.9 |
65 | 32 | 180 | 76.1 | 122 | 145 | 4.0 | 22.0 | 40.0 | 42.4 | 78 | 100 | 4.0 | 22.0 | 36.0 | PFA | 8 x M16 | 4 x M16 | 6.3 |
65 | 40 | 180 | 76.1 | 122 | 145 | 3.0 | 21.0 | 39.0 | 48.3 | 88 | 110 | 3.0 | 21.0 | 35.0 | PTFE | 8 x M16 | 4 x M16 | 6.7 |
65 | 50 | 185 | 76.1 | 122 | 145 | 3.0 | 21.0 | 39.0 | 60.3 | 102 | 125 | 3.0 | 21.0 | 39.0 | PTFE | 8 x M16 | 4 x M16 | 7.6 |
80 | 25 | 185 | 88.9 | 138 | 160 | 4.0 | 24.0 | 40.0 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | PFA | 8 x M16 | 4 x M12 | 6.6 |
80 | 40 | 185 | 88.9 | 138 | 160 | 4.0 | 24.0 | 40.0 | 48.3 | 88 | 110 | 4.0 | 22.0 | 36.0 | PFA | 8 x M16 | 4 x M16 | 7.8 |
80 | 50 | 190 | 88.9 | 138 | 160 | 3.0 | 23.0 | 39.0 | 60.3 | 102 | 125 | 3.0 | 21.0 | 39.0 | PTFE | 8 x M16 | 4 x M16 | 8.8 |
80 | 65 | 190 | 88.9 | 138 | 160 | 3.0 | 23.0 | 39.0 | 76.1 | 122 | 145 | 3.0 | 21.0 | 39.0 | PTFE | 8 x M16 | 8 x M16 | 9.7 |
100 | 50 | 200 | 114.3 | 158 | 180 | 4.0 | 24.0 | 44.0 | 60.3 | 102 | 125 | 4.0 | 22.0 | 40.0 | PFA | 8 x M16 | 4 x M16 | 10.0 |
100 | 65 | 200 | 114.3 | 158 | 180 | 4.5 | 24.5 | 44.5 | 76.1 | 122 | 145 | 4.5 | 22.5 | 40.5 | PTFE | 8 x M16 | 8 x M16 | 10.9 |
100 | 80 | 205 | 114.3 | 158 | 180 | 4.5 | 24.5 | 44.5 | 88.9 | 138 | 160 | 4.5 | 24.5 | 40.5 | PTFE | 8 x M16 | 8 x M16 | 11.9 |
125 | 65 | 230 | 139.7 | 188 | 210 | 4.0 | 26.0 | 44.0 | 76.1 | 122 | 145 | 4.0 | 22.0 | 40.0 | PFA | 8 x M16 | 8 x M16 | 14.1 |
125 | 80 | 235 | 139.7 | 188 | 210 | 4.0 | 26.0 | 44.0 | 88.9 | 138 | 160 | 4.0 | 24.0 | 40.0 | PFA | 8 x M16 | 8 x M16 | 15.1 |
125 | 100 | 235 | 139.7 | 188 | 210 | 4.5 | 26.5 | 44.5 | 114.3 | 158 | 180 | 4.5 | 24.5 | 44.5 | PTFE | 8 x M16 | 8 x M16 | 16.5 |
150 | 80 | 250 | 168.3 | 212 | 240 | 4.0 | 26.0 | 48.0 | 88.9 | 138 | 160 | 4.0 | 24.0 | 40.0 | PFA | 8 x M20 | 8 x M16 | 18.1 |
150 | 100 | 250 | 168.3 | 212 | 240 | 6.0 | 28.0 | 50.0 | 114.3 | 158 | 180 | 6.0 | 26.0 | 46.0 | PTFE | 8 x M20 | 8 x M16 | 19.5 |
150 | 125 | 250 | 168.3 | 212 | 240 | 6.0 | 28.0 | 50.0 | 139.7 | 188 | 210 | 6.0 | 28.0 | 46.0 | PTFE | 8 x M20 | 8 x M16 | 21.5 |
200 | 100 | 270 | 219.1 | 268 | 295 | 6.0 | 30.0 | 50.0 | 114.3 | 158 | 180 | 6.0 | 28.0 | 46.0 | PTFE | 8 x M20 | 8 x M16 | 43.5 |
200 | 125 | 270 | 219.1 | 268 | 295 | 6.0 | 30.0 | 50.0 | 139.7 | 188 | 210 | 6.0 | 28.0 | 46.0 | PTFE | 8 x M20 | 8 x M16 | 49.7 |
200 | 150 | 270 | 219.1 | 268 | 295 | 6.0 | 30.0 | 50.0 | 168.3 | 212 | 240 | 6.0 | 28.0 | 50.0 | PTFE | 8 x M20 | 8 x M20 | 33.0 |
250 | 125 | 305 | 273.0 | 320 | 350 | 6.0 | 32.0 | 54.0 | 139.7 | 188 | 210 | 6.0 | 28.0 | 46.0 | PTFE | 12 x M20 | 8 x M16 | 59.8 |
250 | 150 | 305 | 273.0 | 320 | 350 | 6.0 | 32.0 | 54.0 | 168.3 | 212 | 240 | 6.0 | 30.0 | 50.0 | PTFE | 12 x M20 | 8 x M20 | 67.5 |
250 | 200 | 310 | 273.0 | 320 | 350 | 6.0 | 32.0 | 54.0 | 219.1 | 268 | 295 | 6.0 | 30.0 | 50.0 | PTFE | 12 x M20 | 8 x M20 | 46.9 |
300 | 150 | 330 | 323.9 | 370 | 400 | 6.0 | 32.0 | 54.0 | 168.3 | 212 | 240 | 6.0 | 30.0 | 50.0 | PTFE | 12 x M20 | 8 x M20 | 78.1 |
300 | 200 | 335 | 323.9 | 370 | 400 | 6.0 | 32.0 | 54.0 | 219.1 | 268 | 295 | 6.0 | 30.0 | 50.0 | PTFE | 12 x M20 | 8 x M20 | 91.6 |
300 | 250 | 340 | 323.9 | 370 | 400 | 6.0 | 32.0 | 54.0 | 273.0 | 320 | 350 | 6.0 | 32.0 | 54.0 | PTFE | 12 x M20 | 12 x M20 | 63.2 |
350 | 200 | 465 | 355.6 | 430 | 460 | 7.5 | 37.5 | 59.5 | 219.1 | 268 | 295 | 7.5 | 31.5 | 51.5 | PTFE | 16 x M20 | 8 x M20 | 116.5 |
350 | 250 | 465 | 355.6 | 430 | 460 | 7.5 | 37.5 | 59.5 | 273.0 | 320 | 350 | 7.5 | 33.5 | 55.5 | PTFE | 16 x M20 | 12 x M20 | 129.8 |
350 | 300 | 465 | 355.6 | 430 | 460 | 7.5 | 33.5 | 59.5 | 323.9 | 370 | 400 | 7.5 | 33.5 | 55.5 | PTFE | 16 x M20 | 12 x M20 | 94.9 |
400 | 250 | 495 | 406.4 | 482 | 515 | 7.5 | 39.5 | 63.5 | 273.0 | 320 | 350 | 7.5 | 33.5 | 55.5 | PTFE | 16 x M24 | 12 x M20 | 143.6 |
400 | 300 | 495 | 406.4 | 482 | 515 | 7.5 | 39.5 | 63.5 | 323.9 | 370 | 400 | 7.5 | 33.5 | 55.5 | PTFE | 16 x M24 | 12 x M20 | 165.7 |
400 | 350 | 495 | 406.4 | 482 | 515 | 7.5 | 33.5 | 63.5 | 355.6 | 430 | 460 | 7.5 | 33.5 | 59.5 | PTFE | 16 x M24 | 16 x M20 | 120.9 |
450 | 250 | 495 | 457.0 | 532 | 565 | 8.0 | 44.0 | 68.0 | 273.0 | 320 | 350 | 8.0 | 34.0 | 56.0 | PTFE | 20 x M24 | 12 x M20 | 151.4 |
450 | 300 | 495 | 457.0 | 532 | 565 | 8.0 | 44.0 | 68.0 | 323.9 | 370 | 400 | 8.0 | 34.0 | 56.0 | PTFE | 20 x M24 | 12 x M20 | 173.4 |
450 | 350 | 495 | 457.0 | 532 | 565 | 8.0 | 36.0 | 68.0 | 355.6 | 430 | 460 | 8.0 | 34.0 | 60.0 | PTFE | 20 x M24 | 16 x M20 | 128.4 |
500 | 300 | 650 | 508.0 | 585 | 620 | 8.0 | 46.0 | 72.0 | 323.9 | 370 | 400 | 8.0 | 34.0 | 56.0 | PTFE | 20 x M24 | 12 x M20 | 211.7 |
500 | 350 | 650 | 508.0 | 585 | 620 | 8.0 | 46.0 | 72.0 | 355.6 | 430 | 460 | 8.0 | 38.0 | 60.0 | PTFE | 20 x M24 | 16 x M20 | 241.1 |
500 | 400 | 650 | 508.0 | 585 | 620 | 8.0 | 36.0 | 72.0 | 406.4 | 482 | 515 | 8.0 | 34.0 | 64.0 | PTFE | 20 x M24 | 16 x M24 | 181.9 |
The nominal pipe size combinations printed in bold are manufactured in two parts with flanges fix-fix or fix-loose in which the loose flange is generally on the DN1 side.
Different nominal pipe sizes, total lengths and
other construction types on request.

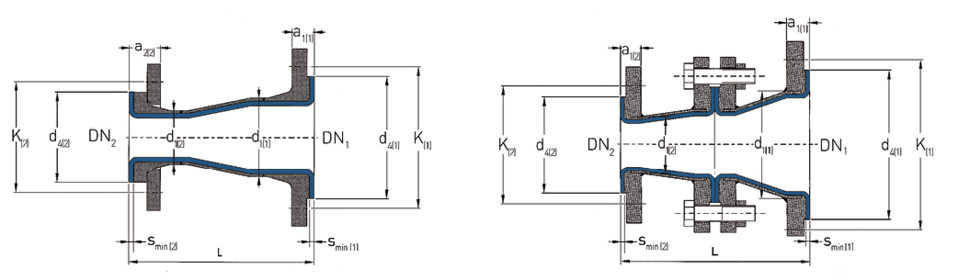

L = Total length
d1 = Outer diameter of the pipe
d4 = Raised face diameter
K = Bolt circle diameter
smin = Minimum flare thickness
a1 = Minimum length with fixed flange and smin
(one-piece: Type 11, two-piece: Type 011)
a2 = Minimum length with loose flange and smin
(one-piece: Types 04/34, two-piece: Types 02/32)
Technical data valid for the pressure level PN 10.
a1 and a2 depend on construction type and lining thickness.
| DN | Lining thickness | Possible vacuum | |||
| standard | thick-walled | 23°C | 150°C | 200°C | |
| 25 |  |  | | ||
| | | |||
| 40 | | | | ||
| | | |||
| 50 | | | | ||
| | | |||
| 80 | | | | ||
| | | |||
| 100 | | | | ||
| | | |||
| 150 | | | | ||
| | | |||
| 200 | | | | ||
| | | |||
| 250 | | | | ||
| | | |||
| 300 | | | | ||
| | | |||
| = | full vacuum |
| = | limited vacuum |
 | = | no vacuum |
| Please refer to the next higher nominal pipe size if your nominal pipe size is not listed. | ||
