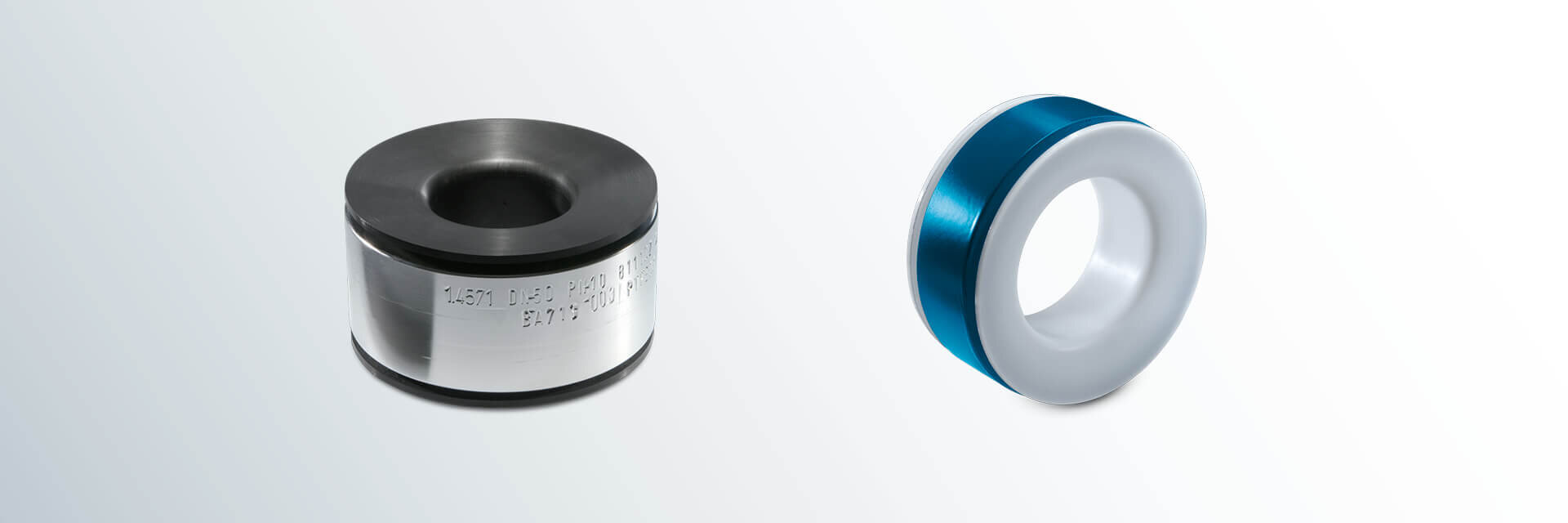

DIN Spacers Form G (PN 10)
For total lengths from 10 – 100 mm we reinforce the Spacers Form G with a resilient metal core.
Materials:
- carbon steel
- stainless steel
Lining materials:
- PTFE (virgin or conductive)
- PP (up to nominal pipe size DN 300)
Other pressure levels:
- PN 16
- PN 25
- PN 40
Special features:
- earthing stud/lug
Optional extras
- final painting
DN
| L (mm) | d2
≈ (mm) | d4
(mm) | d8
(mm) | Weights at Lmax (ca. kg/pc.) | |
min. | max. | |||||
15 | 10 | 60 | 16 | 45 | 50 | 0.7 |
20 | 10 | 60 | 16 | 58 | 60 | 1.1 |
25 | 10 | 60 | 22 | 68 | 70 | 1.4 |
32 | 10 | 60 | 31 | 78 | 82 | 1.9 |
40 | 10 | 60 | 37 | 88 | 92 | 2.3 |
50 | 10 | 60 | 48 | 102 | 107 | 3.0 |
65 | 10 | 60 | 64 | 122 | 127 | 3.9 |
80 | 10 | 70 | 76 | 138 | 142 | 5.5 |
100 | 15 | 70 | 101 | 158 | 162 | 6.1 |
125 | 15 | 70 | 125 | 188 | 192 | 7.8 |
150 | 20 | 80 | 153 | 212 | 218 | 10.0 |
200 | 20 | 80 | 201 | 268 | 273 | 14.0 |
250 | 20 | 90 | 254 | 320 | 328 | 20.0 |
300 | 20 | 90 | 303 | 370 | 378 | 23.7 |
350 | 25 | 90 | 333 | 430 | 438 | 37.6 |
400 | 25 | 90 | 382 | 482 | 488 | 44.2 |
450 | 25 | 100 | 430 | 532 | 536 | 55.0 |
500 | 25 | 100 | 480 | 585 | 594 | 65.9 |
Different nominal pipe sizes
and total lengths on request.

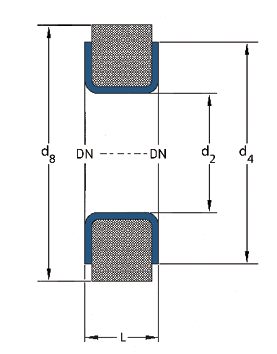

L = Total length
d2 = Inner diameter
d4 = Raised face diameter
d8 = Outer diameter
Technical data valid for the pressure level PN 10.
| DN | Lining thickness | Possible vacuum | |||
| standard | thick-walled | 23°C | 150°C | 200°C | |
| 25 |  | | | ||
| | | |||
| 40 | | | | ||
| | | |||
| 50 | | |  | ||
| | | |||
| 80 | | | | ||
| | | |||
| 100 | | | | ||
| | | |||
| 150 | | | | ||
| | | |||
| 200 | | | | ||
| | | |||
| 250 | | | | ||
| | | |||
| 300 | | | | ||
| | | |||
| = | full vacuum |
| = | limited vacuum |
 | = | no vacuum |
| Please refer to the next higher nominal pipe size if your nominal pipe size is not listed. | ||
