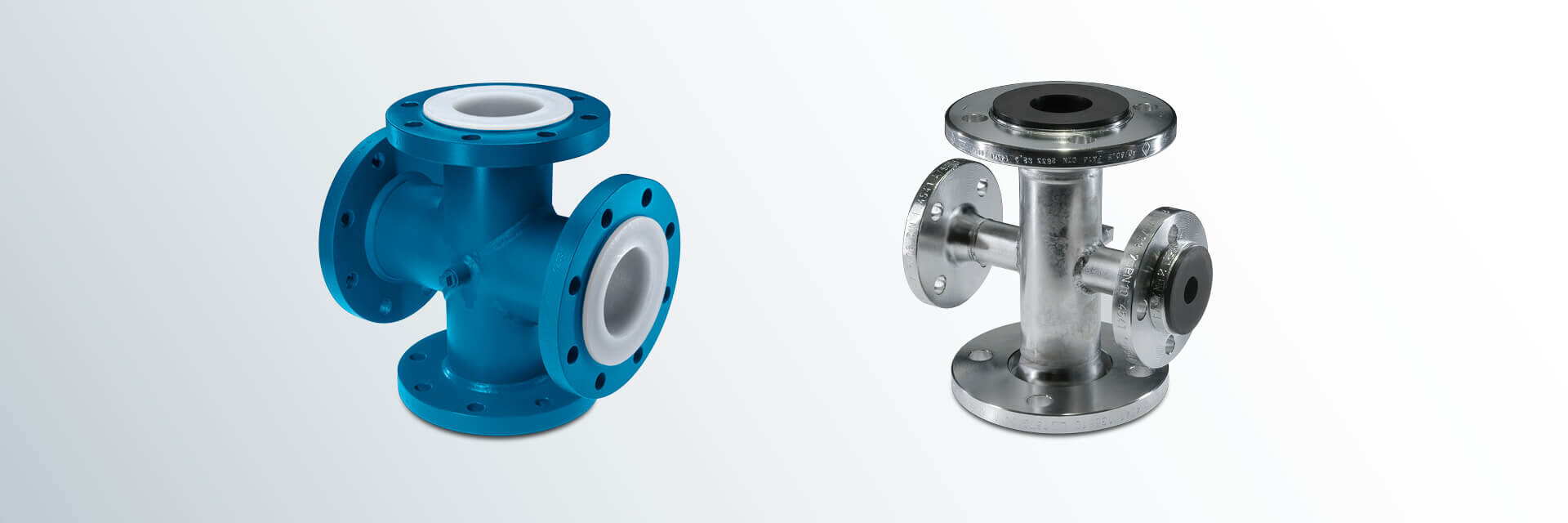

DIN Flanged Crosses (PN 10)
The one-piece design with PFA or PP lining assures a perfect flow in all four directions. The manufacturing of our one-piece Flanged Crosses is done by injection moulding. For Flanged Crosses with nominal pipe sizes larger than DN1 100, we rely on our approved paste liner. Both manufacturing technologies assure a specially smooth and easy-to-clean surface.
Materials:
- carbon steel
- stainless steel
Lining materials:
- up to nominal pipe size DN1 100 (one-piece): PFA (virgin or conductive)
- up to nominal pipe size DN1 100 (one-piece): PP
- from nominal pipe size DN1 125 (one-piece): on request
- from nominal pipe size DN1 125 (three-piece): PTFE (virgin or conductive)
Flanges according to EN 1092-1 (reading order A-B-C-D):
- combinations of fixed flanges
- combinations of loose flanges
- combinations of fixed and loose flanges
Other pressure levels:
- PN 16
- PN 25
- PN 40
Special features:
- earthing stud/lug
- vent hole extension
- flange stopper
Optional extras:
- final painting
- non-destructive testing
DN1
| DN2
| L1
(mm) | L2
(mm) | d1(1)
(mm) | d4(1)
(mm) | K(1)
(mm) | smin(1)
(mm) | a1(1)
(mm) | a2(1)
(mm) | d1(2)
(mm) | d4(2)
(mm) | K(2)
(mm) | smin(2)
(mm) | a1(2)
(mm) | a2(2)
(mm) | No. of bolts | Wt. (ca. | |
DN1 | DN2 | |||||||||||||||||
15 | 15 | 85 | 85 | 26.9 | 45 | 65 | 4.0 | 20.0 | 30.0 | 26.9 | 45 | 65 | 4.0 | 20.0 | 30.0 | 4 x M12 | 4 x M12 | 3.5 |
20 | 15 | 95 | 85 | 26.9 | 58 | 75 | 4.0 | 22.0 | 34.0 | 26.9 | 45 | 65 | 4.0 | 20.0 | 30.0 | 4 x M12 | 4 x M12 | 4.3 |
20 | 20 | 95 | 95 | 26.9 | 58 | 75 | 4.0 | 22.0 | 34.0 | 26.9 | 58 | 75 | 4.0 | 22.0 | 34.0 | 4 x M12 | 4 x M12 | 5.2 |
25 | 15 | 110 | 85 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | 26.9 | 45 | 65 | 4.0 | 20.0 | 30.0 | 4 x M12 | 4 x M12 | 5.0 |
25 | 20 | 110 | 95 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | 26.9 | 58 | 75 | 4.0 | 22.0 | 34.0 | 4 x M12 | 4 x M12 | 5.8 |
25 | 25 | 110 | 110 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | 4 x M12 | 4 x M12 | 6.5 |
32 | 15 | 130 | 85 | 42.4 | 78 | 100 | 4.0 | 22.0 | 36.0 | 26.9 | 45 | 65 | 4.0 | 20.0 | 30.0 | 4 x M16 | 4 x M12 | 6.6 |
32 | 20 | 130 | 100 | 42.4 | 78 | 100 | 4.0 | 22.0 | 36.0 | 26.9 | 58 | 75 | 4.0 | 22.0 | 34.0 | 4 x M16 | 4 x M12 | 7.5 |
32 | 25 | 130 | 110 | 42.4 | 78 | 100 | 4.0 | 22.0 | 36.0 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | 4 x M16 | 4 x M12 | 8.1 |
32 | 32 | 130 | 130 | 42.4 | 78 | 100 | 4.0 | 22.0 | 36.0 | 42.4 | 78 | 100 | 4.0 | 22.0 | 36.0 | 4 x M16 | 4 x M16 | 9.8 |
40 | 20 | 150 | 100 | 48.3 | 88 | 110 | 4.0 | 22.0 | 36.0 | 26.9 | 58 | 75 | 4.0 | 22.0 | 34.0 | 4 x M16 | 4 x M12 | 8.4 |
40 | 25 | 150 | 110 | 48.3 | 88 | 110 | 4.0 | 22.0 | 36.0 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | 4 x M16 | 4 x M12 | 9.0 |
40 | 32 | 150 | 130 | 48.3 | 88 | 110 | 4.0 | 22.0 | 36.0 | 42.4 | 78 | 100 | 4.0 | 22.0 | 36.0 | 4 x M16 | 4 x M16 | 10.7 |
40 | 40 | 150 | 150 | 48.3 | 88 | 110 | 4.0 | 22.0 | 36.0 | 48.3 | 88 | 110 | 4.0 | 22.0 | 36.0 | 4 x M16 | 4 x M16 | 11.5 |
50 | 25 | 120 | 110 | 60.3 | 102 | 125 | 4.0 | 22.0 | 40.0 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | 4 x M16 | 4 x M12 | 10.2 |
50 | 32 | 120 | 130 | 60.3 | 102 | 125 | 4.0 | 22.0 | 40.0 | 42.4 | 78 | 100 | 4.0 | 22.0 | 36.0 | 4 x M16 | 4 x M16 | 11.8 |
50 | 40 | 120 | 150 | 60.3 | 102 | 125 | 4.0 | 22.0 | 40.0 | 48.3 | 88 | 110 | 4.0 | 22.0 | 36.0 | 4 x M16 | 4 x M16 | 12.7 |
50 | 50 | 120 | 120 | 60.3 | 102 | 125 | 4.0 | 22.0 | 40.0 | 60.3 | 102 | 125 | 4.0 | 22.0 | 40.0 | 4 x M16 | 4 x M16 | 13.8 |
65 | 25 | 140 | 110 | 76.1 | 122 | 145 | 4.0 | 22.0 | 40.0 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | 8 x M16 | 4 x M12 | 12.0 |
65 | 32 | 140 | 130 | 76.1 | 122 | 145 | 4.0 | 22.0 | 40.0 | 42.4 | 78 | 100 | 4.0 | 22.0 | 36.0 | 8 x M16 | 4 x M16 | 13.6 |
65 | 40 | 140 | 150 | 76.1 | 122 | 145 | 4.0 | 22.0 | 40.0 | 48.3 | 88 | 110 | 4.0 | 22.0 | 36.0 | 8 x M16 | 4 x M16 | 14.5 |
65 | 50 | 140 | 120 | 76.1 | 122 | 145 | 4.0 | 22.0 | 40.0 | 60.3 | 102 | 125 | 4.0 | 22.0 | 40.0 | 8 x M16 | 4 x M16 | 15.7 |
65 | 65 | 140 | 140 | 76.1 | 122 | 145 | 4.0 | 22.0 | 40.0 | 76.1 | 122 | 145 | 4.0 | 22.0 | 40.0 | 8 x M16 | 8 x M16 | 17.5 |
80 | 25 | 165 | 110 | 88.9 | 138 | 160 | 4.0 | 24.0 | 40.0 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | 8 x M16 | 4 x M12 | 14.4 |
80 | 40 | 165 | 150 | 88.9 | 138 | 160 | 4.0 | 24.0 | 40.0 | 48.3 | 88 | 110 | 4.0 | 22.0 | 36.0 | 8 x M16 | 4 x M16 | 17.0 |
80 | 50 | 165 | 120 | 88.9 | 138 | 160 | 4.0 | 24.0 | 40.0 | 60.3 | 102 | 125 | 4.0 | 22.0 | 40.0 | 8 x M16 | 4 x M16 | 18.1 |
80 | 65 | 165 | 140 | 88.9 | 138 | 160 | 4.0 | 24.0 | 40.0 | 76.1 | 122 | 145 | 4.0 | 22.0 | 40.0 | 8 x M16 | 8 x M16 | 19.9 |
80 | 80 | 165 | 165 | 88.9 | 138 | 160 | 4.0 | 24.0 | 40.0 | 88.9 | 138 | 160 | 4.0 | 24.0 | 40.0 | 8 x M16 | 8 x M16 | 22.4 |
100 | 25 | 205 | 110 | 114.3 | 158 | 180 | 4.0 | 24.0 | 44.0 | 33.7 | 68 | 85 | 4.0 | 22.0 | 34.0 | 8 x M16 | 4 x M12 | 18.0 |
100 | 50 | 205 | 120 | 114.3 | 158 | 180 | 4.0 | 24.0 | 44.0 | 60.3 | 102 | 125 | 4.0 | 22.0 | 40.0 | 8 x M16 | 4 x M16 | 21.7 |
100 | 65 | 205 | 140 | 114.3 | 158 | 180 | 4.0 | 24.0 | 44.0 | 76.1 | 122 | 145 | 4.0 | 22.0 | 40.0 | 8 x M16 | 8 x M16 | 23.5 |
100 | 80 | 205 | 165 | 114.3 | 158 | 180 | 4.0 | 24.0 | 44.0 | 88.9 | 138 | 160 | 4.0 | 24.0 | 40.0 | 8 x M16 | 8 x M16 | 26.0 |
100 | 100 | 205 | 205 | 114.3 | 158 | 180 | 4.0 | 24.0 | 44.0 | 114.3 | 158 | 180 | 4.0 | 24.0 | 44.0 | 8 x M16 | 8 x M16 | 29.6 |
125 | 65 | 245 | 140 | 139.7 | 188 | 210 | 6.0 | 28.0 | 46.0 | 76.1 | 122 | 145 | 3.0 | 21.0 | 39.0 | 8 x M16 | 8 x M16 | 44.7 |
125 | 80 | 245 | 165 | 139.7 | 188 | 210 | 6.0 | 28.0 | 46.0 | 88.9 | 138 | 160 | 3.0 | 23.0 | 39.0 | 8 x M16 | 8 x M16 | 48.9 |
125 | 100 | 245 | 205 | 139.7 | 188 | 210 | 6.0 | 28.0 | 46.0 | 114.3 | 158 | 180 | 3.0 | 23.0 | 43.0 | 8 x M16 | 8 x M16 | 55.7 |
125 | 125 | 245 | 245 | 139.7 | 188 | 210 | 6.0 | 28.0 | 46.0 | 139.7 | 188 | 210 | 4.0 | 26.0 | 44.0 | 8 x M16 | 8 x M16 | 66.4 |
150 | 80 | 285 | 165 | 168.3 | 212 | 240 | 6.0 | 28.0 | 50.0 | 88.9 | 138 | 160 | 3.0 | 23.0 | 39.0 | 8 x M20 | 8 x M16 | 56.9 |
150 | 100 | 285 | 205 | 168.3 | 212 | 240 | 6.0 | 28.0 | 50.0 | 114.3 | 158 | 180 | 3.0 | 23.0 | 43.0 | 8 x M20 | 8 x M16 | 63.7 |
150 | 125 | 285 | 245 | 168.3 | 212 | 240 | 6.0 | 28.0 | 50.0 | 139.7 | 188 | 210 | 4.0 | 26.0 | 44.0 | 8 x M20 | 8 x M16 | 74.4 |
150 | 150 | 285 | 285 | 168.3 | 212 | 240 | 6.0 | 28.0 | 50.0 | 168.3 | 212 | 240 | 4.5 | 26.5 | 48.5 | 8 x M20 | 8 x M20 | 90.9 |
200 | 100 | 365 | 205 | 219.1 | 268 | 295 | 6.0 | 30.0 | 50.0 | 114.3 | 158 | 180 | 3.0 | 23.0 | 43.0 | 8 x M20 | 8 x M16 | 85.6 |
200 | 125 | 365 | 245 | 219.1 | 268 | 295 | 6.0 | 30.0 | 50.0 | 139.7 | 188 | 210 | 4.0 | 26.0 | 44.0 | 8 x M20 | 8 x M16 | 96.4 |
200 | 150 | 365 | 285 | 219.1 | 268 | 295 | 6.0 | 30.0 | 50.0 | 168.3 | 212 | 240 | 4.5 | 26.5 | 48.5 | 8 x M20 | 8 x M20 | 112.9 |
200 | 200 | 365 | 365 | 219.1 | 268 | 295 | 6.0 | 30.0 | 50.0 | 219.1 | 268 | 295 | 5.0 | 29.0 | 49.0 | 8 x M20 | 8 x M20 | 143.5 |
250 | 125 | 450 | 245 | 273.0 | 320 | 350 | 7.5 | 33.5 | 55.5 | 139.7 | 188 | 210 | 4.0 | 26.0 | 44.0 | 12 x M20 | 8 x M16 | 119.7 |
250 | 150 | 450 | 285 | 273.0 | 320 | 350 | 7.5 | 33.5 | 55.5 | 168.3 | 212 | 240 | 4.5 | 26.5 | 48.5 | 12 x M20 | 8 x M20 | 136.3 |
250 | 200 | 450 | 365 | 273.0 | 320 | 350 | 7.5 | 33.5 | 55.5 | 219.1 | 268 | 295 | 5.0 | 29.0 | 49.0 | 12 x M20 | 8 x M20 | 166.9 |
250 | 250 | 450 | 450 | 273.0 | 320 | 350 | 7.5 | 33.5 | 55.5 | 273.0 | 320 | 350 | 5.0 | 31.0 | 53.0 | 12 x M20 | 12 x M20 | 202.1 |
300 | 150 | 525 | 285 | 323.9 | 370 | 400 | 7.5 | 33.5 | 55.5 | 168.3 | 212 | 240 | 4.5 | 26.5 | 48.5 | 12 x M20 | 8 x M20 | 163.9 |
300 | 200 | 525 | 365 | 323.9 | 370 | 400 | 7.5 | 33.5 | 55.5 | 219.1 | 268 | 295 | 5.0 | 29.0 | 49.0 | 12 x M20 | 8 x M20 | 194.5 |
300 | 250 | 525 | 450 | 323.9 | 370 | 400 | 7.5 | 33.5 | 55.5 | 273.0 | 320 | 350 | 5.0 | 31.0 | 53.0 | 12 x M20 | 12 x M20 | 229.7 |
300 | 300 | 525 | 525 | 323.9 | 370 | 400 | 7.5 | 33.5 | 55.5 | 323.9 | 370 | 400 | 5.0 | 31.0 | 53.0 | 12 x M20 | 12 x M20 | 264.8 |
350 | 200 | 600 | 365 | 355.6 | 430 | 460 | 8.0 | 34.0 | 60.0 | 219.1 | 268 | 295 | 5.0 | 29.0 | 49.0 | 16 x M20 | 8 x M20 | 231.5 |
350 | 250 | 600 | 450 | 355.6 | 430 | 460 | 8.0 | 34.0 | 60.0 | 273.0 | 320 | 350 | 5.0 | 31.0 | 53.0 | 16 x M20 | 12 x M20 | 266.7 |
350 | 300 | 600 | 525 | 355.6 | 430 | 460 | 8.0 | 34.0 | 60.0 | 323.9 | 370 | 400 | 5.0 | 31.0 | 53.0 | 16 x M20 | 12 x M20 | 301.8 |
350 | 350 | 600 | 600 | 355.6 | 430 | 460 | 8.0 | 34.0 | 60.0 | 355.6 | 430 | 460 | 5.0 | 31.0 | 57.0 | 16 x M20 | 16 x M20 | 367.8 |
400 | 250 | 680 | 450 | 406.4 | 482 | 515 | 7.0 | 33.0 | 63.0 | 273.0 | 320 | 350 | 5.0 | 31.0 | 53.0 | 16 x M24 | 12 x M20 | 313.6 |
400 | 300 | 680 | 525 | 406.4 | 482 | 515 | 7.0 | 33.0 | 63.0 | 323.9 | 370 | 400 | 5.0 | 31.0 | 53.0 | 16 x M24 | 12 x M20 | 348.6 |
400 | 350 | 680 | 600 | 406.4 | 482 | 515 | 7.0 | 33.0 | 63.0 | 355.6 | 430 | 460 | 5.0 | 31.0 | 57.0 | 16 x M24 | 16 x M20 | 414.7 |
400 | 400 | 680 | 680 | 406.4 | 482 | 515 | 7.0 | 33.0 | 63.0 | 406.4 | 482 | 515 | 5.0 | 31.0 | 61.0 | 16 x M24 | 16 x M24 | 495.4 |
450 | 300 | 680 | 525 | 457.0 | 532 | 565 | 8.0 | 36.0 | 68.0 | 323.9 | 370 | 400 | 5.0 | 31.0 | 53.0 | 20 x M24 | 12 x M20 | 363.7 |
450 | 350 | 680 | 600 | 457.0 | 532 | 565 | 8.0 | 36.0 | 68.0 | 355.6 | 430 | 460 | 5.0 | 31.0 | 57.0 | 20 x M24 | 16 x M20 | 429.7 |
450 | 400 | 680 | 680 | 457.0 | 532 | 565 | 8.0 | 36.0 | 68.0 | 406.4 | 482 | 515 | 5.0 | 31.0 | 61.0 | 20 x M24 | 16 x M24 | 510.5 |
450 | 450 | 680 | 680 | 457.0 | 532 | 565 | 8.0 | 36.0 | 68.0 | 457.0 | 532 | 565 | 5.0 | 33.0 | 65.0 | 20 x M24 | 20 x M24 | 553.3 |
500 | 300 | 830 | 525 | 508.0 | 585 | 620 | 8.0 | 36.0 | 72.0 | 323.9 | 370 | 400 | 5.0 | 31.0 | 53.0 | 20 x M24 | 12x M20 | 424.0 |
500 | 350 | 830 | 600 | 508.0 | 585 | 620 | 8.0 | 36.0 | 72.0 | 355.6 | 430 | 460 | 5.0 | 31.0 | 57.0 | 20 x M24 | 16 x M20 | 490.0 |
500 | 400 | 830 | 680 | 508.0 | 585 | 620 | 8.0 | 36.0 | 72.0 | 406.4 | 482 | 515 | 5.0 | 31.0 | 61.0 | 20 x M24 | 16 x M24 | 570.7 |
500 | 450 | 830 | 680 | 508.0 | 585 | 620 | 8.0 | 36.0 | 72.0 | 457.0 | 532 | 565 | 5.0 | 33.0 | 65.0 | 20 x M24 | 20 x M24 | 613.6 |
500 | 500 | 830 | 830 | 508.0 | 585 | 620 | 8.0 | 36.0 | 72.0 | 508.0 | 585 | 620 | 5.0 | 33.0 | 69.0 | 20 x M24 | 20 x M24 | 700.3 |

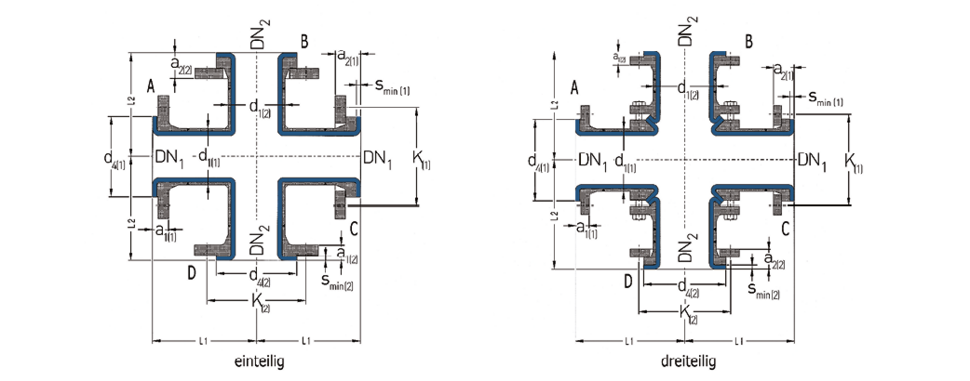

Different nominal pipe sizes, total lengths and
other construction types on request.
L = Total length
d1 = Outer diameter of the pipe
d4 = Raised face diameter
K = Bolt circle diameter
smin = Minimum flare thickness
a1 = Minimum length with fixed flange (Type 11) and smin
a2 = Minimum length with loose flange (Types 04/34) and smin
Technical data valid for the pressure level PN 10.
a1 and a2 depend on construction type and lining thickness.
| DN | Lining thickness | Possible vacuum | |||
| standard | thick-walled | 23°C | 150°C | 200°C | |
| 25 |  |  | | ||
| | | |||
| 40 | | | | ||
| | | |||
| 50 | | | | ||
| | | |||
| 80 | | | | ||
| | | |||
| 100 | | | | ||
| | | |||
| 150 | | | | ||
| | | |||
| 200 | | | | ||
| | | |||
| 250 | | | | ||
| | | |||
| 300 | | | | ||
| | | |||
| = | full vacuum |
| = | limited vacuum |
 | = | no vacuum |
| Please refer to the next higher nominal pipe size if your nominal pipe size is not listed. | ||
